• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1992 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129813

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 2 x 1,5/ 4 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

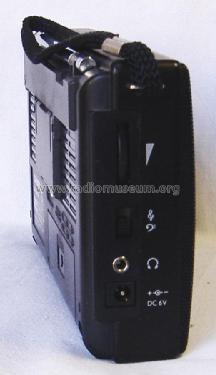

• Model: Ocean-Boy 330 - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 190 x 110 x 40 mm / 7.5 x 4.3 x 1.6 inch

• Notes
• Digitale Frequenzanzeige (UKW 50kHz) auf allen Bereichen, mit Sendersuchlauf auf- und abwärts. 5 Stationsspeicher pro Bereich. Uhr (2x1,5V), Wecker, Sleep-Funktion, Displaybeleuchtung und Klangumschalter (Baß/Höhen).

• Net weight (2.2 lb = 1 kg)
• 0.490 kg / 1 lb 1.3 oz (1.079 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
