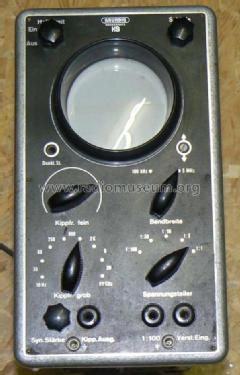

Oszillograph 219
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1955 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 165918
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszillograph 219 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 130 x 270 x 310 mm / 5.1 x 10.6 x 12.2 inch
- Notes
- Messverstärker Schmalbandstellung: 10 Hz...100 kHz; Breitbandstellung: 5 Hz...3 MHz. Eingangswirkwiderstand: 1 MOhm.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Mentioned in
- -- Original prospect or advert (Czech, J., Der Elektronenstrahl-Oszillograf, 1955)
- Author
- Model page created by Holger Krebs. See "Data change" for further contributors.
