• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1962

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 107359

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• E88CC E88CC E88CC E88CC E88CC E88CC E88CC E80CF E80CF PCL82 PCL82 PL84 EZ80 DH7-78 STV85/8

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

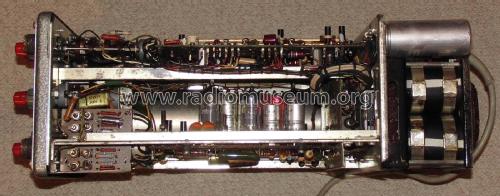

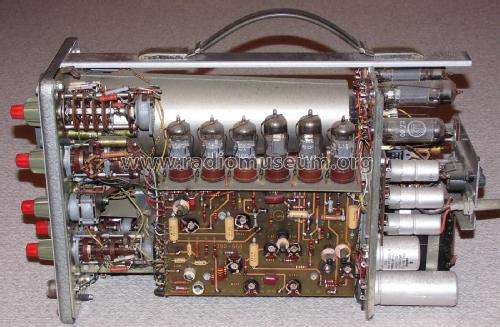

• Model: Oszillograph MO 5/7 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 130 x 260 x 400 mm / 5.1 x 10.2 x 15.7 inch

• Notes

• Y-Verstärker: 30 mV/cm; 0...5 MHz; Abschwächer: 1:3 stetig und 6 Stufen.
  X-Verstärker: 1 V/cm; 0...2 MHz.
  Zeitablenkung: 1 µs/cm ... 0,1 s/cm.

  Preis in Belgien 20'831.00 BFr

• Net weight (2.2 lb = 1 kg)
• 8.2 kg / 18 lb 1 oz (18.062 lb)

• Price in first year of sale
• 1,335.00 DM

• Mentioned in
• -- Original prospect or advert (Funkschau 1962, Heft 12, S.323)

• Literature/Schematics (1)
• Hilfsbuch der Katodenstrahl-Oszillografie, H. Richter, 1965

• Literature/Schematics (2)
• - - Manufacturers Literature (Grundig Preisliste Mai 1965)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
