• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117892

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF314 BF241 BF241 BF241 BF240 BC309 BC238 BC238 AC187 AC188

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-240; 2 × 4,5; 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

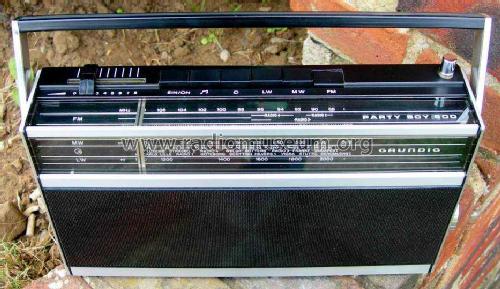

• Model: Party-Boy 500 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 170 x 70 mm / 11.4 x 6.7 x 2.8 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
