Party Center 2000 HiFI

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1983–1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131818

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

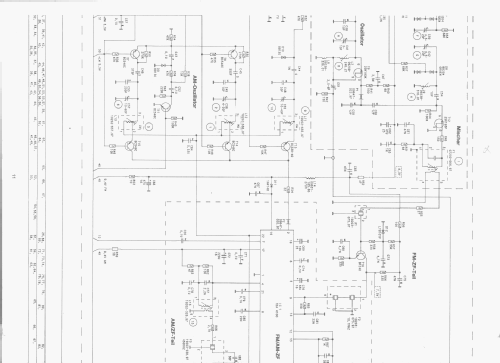

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 8 × 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Party Center 2000 HiFI - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 330 x 270 x 160 mm / 13 x 10.6 x 6.3 inch

• Notes
• Dimensions mit Boxen: 68 × 27×1 6cm.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 1,198.00 DM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
