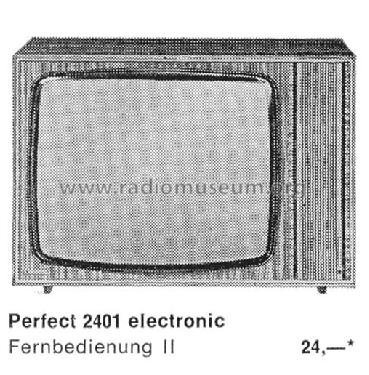

Perfect electronic 2401

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1969/1970
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 241388
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Perfect electronic 2401 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 715 x 500 x 400 mm / 28.1 x 19.7 x 15.7 inch
  • Notes

  • Technische Daten wie T 7019, jedoch Bedienteil durch Klappe abschließbar.

  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Literature/Schematics (1)
  • Grundig Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
