Phono-Consolette PC58
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21703
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Phono-Consolette PC58 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 790 x 240 x 340 mm / 31.1 x 9.4 x 13.4 inch
- Price in first year of sale
- 438.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Other Models
-
Here you find 6212 models, 5442 with images and 4209 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collections
The model Phono-Consolette is part of the collections of the following members.
Forum contributions about this model: Grundig Radio-: Phono-Consolette PC58
Threads: 1 | Posts: 3
Dear radio friends

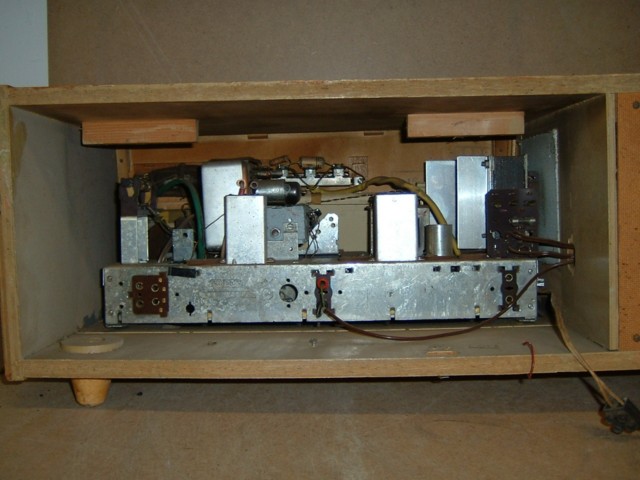

Who can help me in identifying this Grundig radio?
It has at the left a small slot for a 45 RPM vinyl record. (not visible at the picture)
All tubes, except an ECC85, are missing, there is no back panel, and no type plate.
Thank You
Attachments
- Grundig xx (1) [640x480] (55 KB)
- Grundig xx [640x480] (66 KB)
Georges Van Campenhout † 28.4.22, 07.May.10
