Phono-Kombination 1099PM Nussbaum, natur

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21695
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

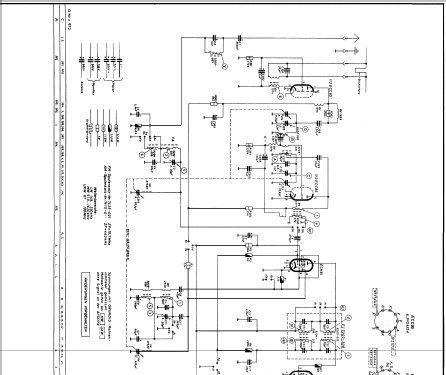

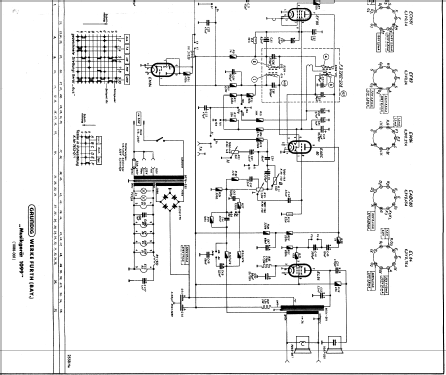

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Phono-Kombination 1099PM [Nussbaum, natur] - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 470 x 330 x 270 mm / 18.5 x 13 x 10.6 inch
  • Notes
  •
  • Net weight (2.2 lb = 1 kg)
  • 9.2 kg / 20 lb 4.2 oz (20.264 lb)
  • Price in first year of sale
  • 349.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model Phono-Kombination is part of the collections of the following members.

 Forum

Forum contributions about this model: Grundig Radio-: Phono-Kombination 1099PM

Threads: 1 | Posts: 2

Last week at an auction I bought a Grundig 1099 with a Philips Mignon record player in it.This is a radio with a rather unusual slot for the 45rpm records at the right side and not in the front as is common on other similar models.After making four new rubber pillows,it worked fine.I've seen this player in some other radios,for example in a Swedish Conserton-but they were all using Philips chassis.My question is:Was this Philips Mignon player ever used by any other manufacturer?

Rolf Zetterberg, 24.Jul.04

Weitere Posts (2) zu diesem Thema.
