• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21699

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM34 or EM35 ECC83 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

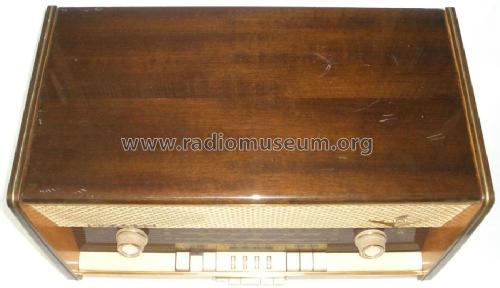

• Model: Phono-Kombination 5079Ph [Nussbaum, natur] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 380 x 350 mm / 26 x 15 x 13.8 inch

• Notes

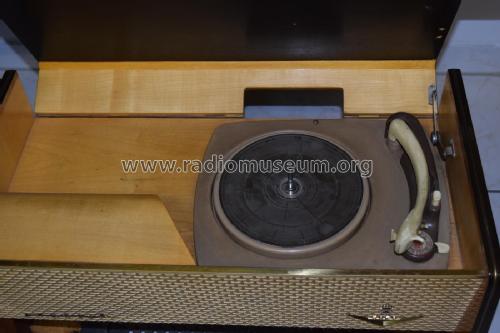

• Phono-Chassis: Plattenwechsler PE Rex de Luxe.

  Ausführung: Nussbaum, Natur.

  Die Grundig Phono-Kombination 5079Ph wurde auch in der Gehäuseausführung Holz, mittel bis dunkel hochglanz poliert, zu DM 598,- angeboten.

• Net weight (2.2 lb = 1 kg)
• 20.3 kg / 44 lb 11.4 oz (44.714 lb)

• Price in first year of sale
• 610.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)
• -- Original-techn. papers.
