• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159985

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

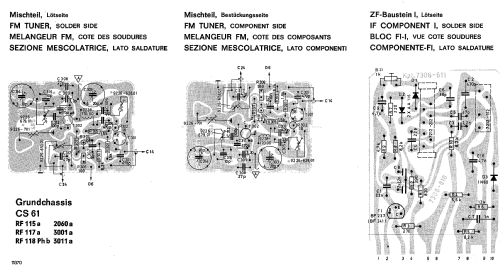

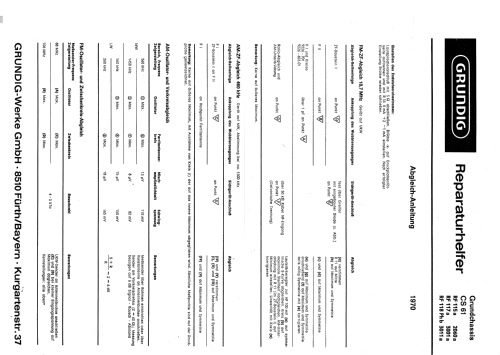

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF222 BF185 or. BF255 BF195 BF238 BF237 BC148 BC181 AC187 AC188 AC117 AA116 AA116 1N60 5522 B30C300

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

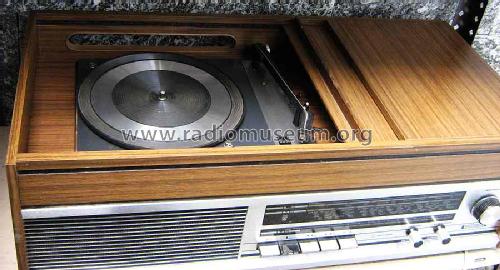

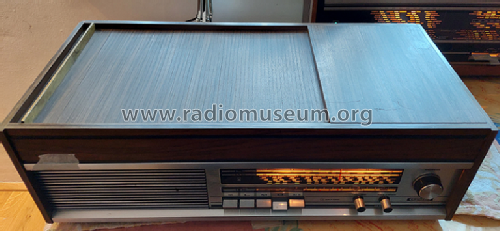

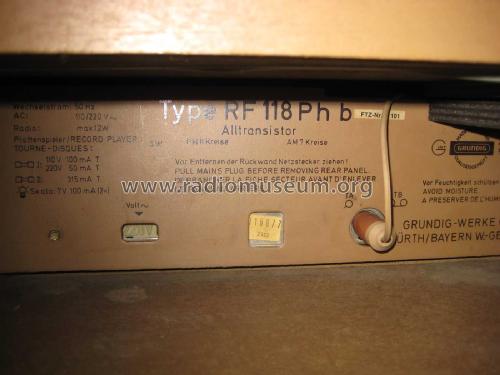

• Model: Phono-Kombination RF118Ph b Ch= CS61 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 220 x 300 mm / 24.4 x 8.7 x 11.8 inch

• Notes
• Dual Plattenspieler Typ 420.

• Net weight (2.2 lb = 1 kg)
• 11.4 kg / 25 lb 1.8 oz (25.11 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundig Grundchassis CS61)

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
