• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1972–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28658

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BF222 or. BF200 BF241 BF255 BF254 BF240 BF241 BC238 BC238 BC328 AC187 AC188 AD156 1N60 BZX83 TBA480 B30C400

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

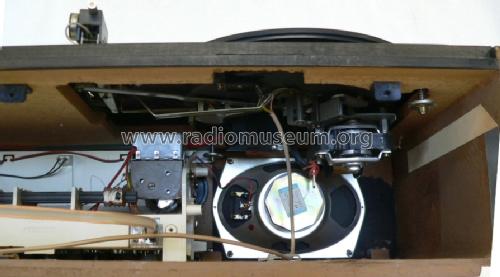

• Model: Phono-Kombination RF510Ph Ch= RC200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 190 x 250 mm / 24.4 x 7.5 x 9.8 inch

• Notes
• 1 IC: TBA480
  Phono-Chassis = Dual 420 mit Kristallsystem CDS650.
  2 Ausführungen: holz oder weiß.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundchassis RC200)
