Phonomascope Raumhall
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1961–1964
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 24473
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

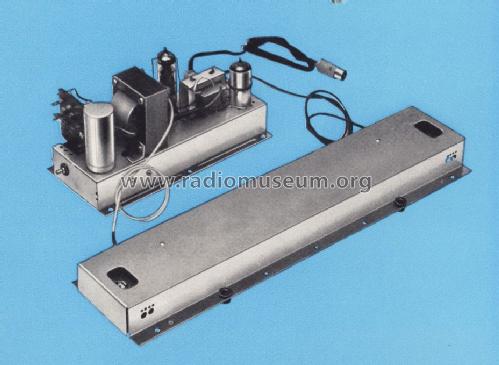

Grundig Bausteinserie 1962
Grundig Bausteinserie 1962

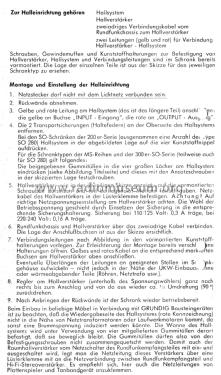

Q: Grundig, Einbauanleitung 1962
Q: Grundig, Einbauanleitung 1962
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Phonomascope Raumhall - Grundig Radio-Vertrieb, RVF,
- Shape
- Chassis only or for «building in»
- Notes
- Raumhall-Einrichtung mit Hallspiralen (Hammond).
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Price in first year of sale
- 135.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Literature/Schematics (1)
- Funkschau (1961 H11 S.280 und 1963 H2 S.39)
- Other Models
-
Here you find 6208 models, 5434 with images and 4205 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collections
The model Phonomascope Raumhall is part of the collections of the following members.
Forum contributions about this model: Grundig Radio-: Phonomascope Raumhall
Threads: 1 | Posts: 1
Das ist doch eine Hammond-Hallspirale. Auch im SABA Sonorama Hallgerät fand diese Hallspirale Verwendung.
Die Information stammt von Tobias Münzing.
Danke,
KoBi
Die Information stammt von Tobias Münzing.
Danke,
KoBi
Konrad Birkner † 12.08.2014, 27.Apr.06
