Prima Boy 100 Suchlauf

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1996

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
140349

- alternative name: Grundig Portugal || Grundig USA / Lextronix

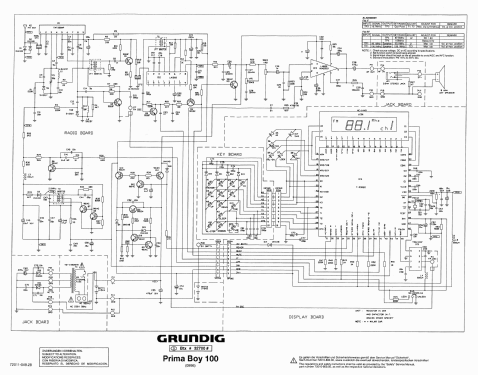

Schematics

Prima Boy 100; Grundig Radio- (ID = 2449318) Radio — Grundig Radio- Prima Boy 100 (3)

Prima Boy 100; Grundig Radio- (ID = 2449385) Radio — Grundig Radio- Prima Boy 100 (3)

Prima Boy 100; Grundig Radio- (ID = 528904) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 705865) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 528906) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 528908) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 528911) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 705867) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 705869) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 705870) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 705873) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 705875) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1079224) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1079225) Radio — Grundig Radio- Prima Boy 100 (2)

Prima Boy 100; Grundig Radio- (ID = 1079226) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1079227) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1079228) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1079229) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1079230) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1983889) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1983892) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1983893) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 1983894) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 2764232) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 2764233) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 2764234) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 2764235) Radio — Grundig Radio- Prima Boy 100 (1)

Prima Boy 100; Grundig Radio- (ID = 2764236) Radio — Grundig Radio- Prima Boy 100 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
FM Broadcast Band Only

Power type and voltage

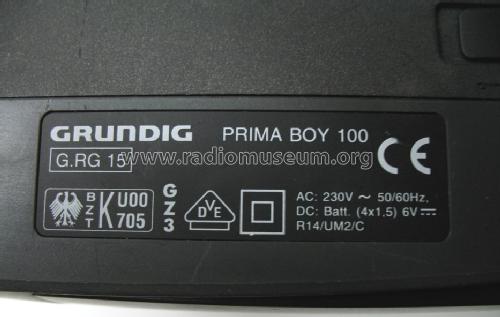

Line / Batteries (any type) / 230 / 4 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

Power out
1 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Prima Boy 100 [Suchlauf] - Grundig Radio-Vertrieb, RVF,

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
250 x 140 x 65 mm / 9.8 x 5.5 x 2.6 inch

Notes

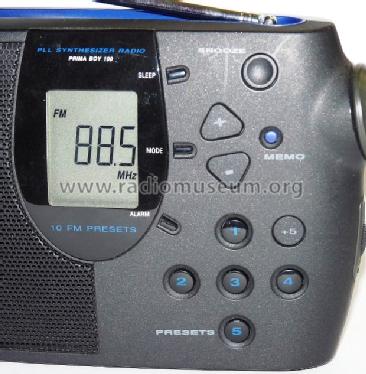

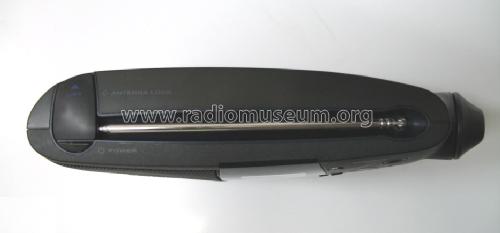

PLL-Synthesizer Radio, Sendersuchlauf, 10 Fixstationen, Digitaluhr mit Weckfunktion, Tonregler, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, 5 tlg. Teleskopantenne, Muschelförmiger, aufklappbarer Tragegriff

Source of data
- - Data from my own collection

Author
Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
