Prima-Boy 700

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73944

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

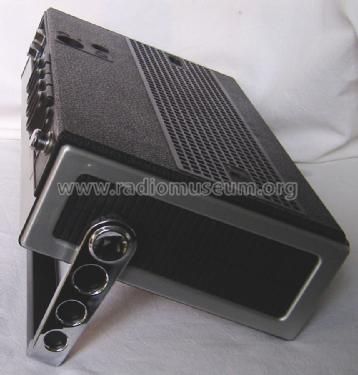

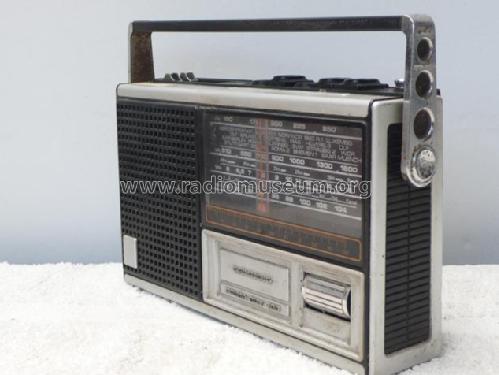

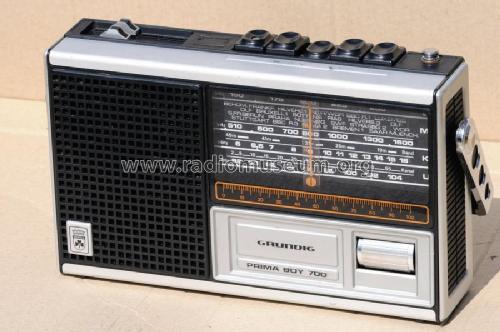

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF314 BF241 BF241 BF241 BF240 BC239 BC238 BC338 GC269 GC373 GC374

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

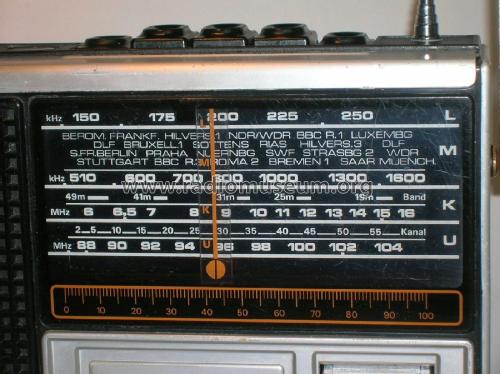

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-220 / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Prima-Boy 700 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 155 x 63 mm / 10.4 x 6.1 x 2.5 inch

• Notes

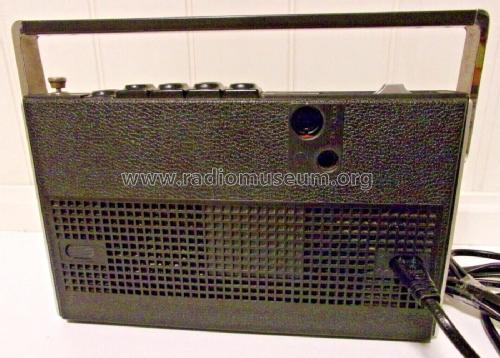

• Ausgangsleistung bei Netzbetrieb: 1,5 W (Musik). Ovallautsprecher 75 x 130 mm, Anschlußmöglichkeit für Tonband oder Plattenspieler über Din Buchse, Kopfhörerausgang 3,5 mm

  Made in Portugal

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
