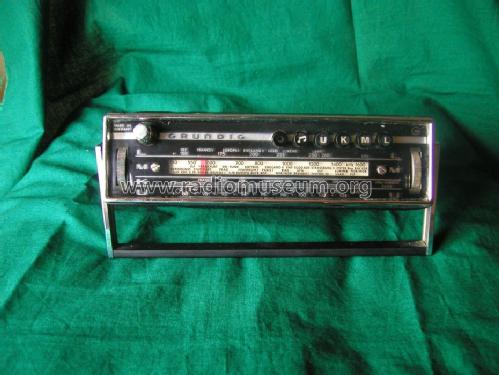

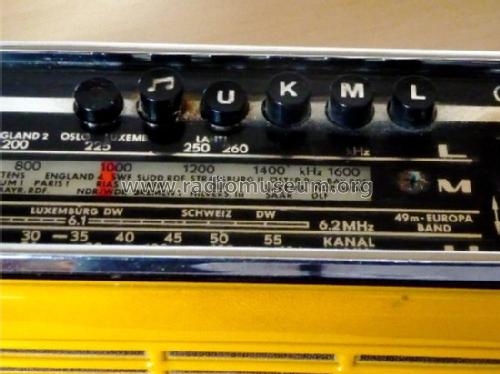

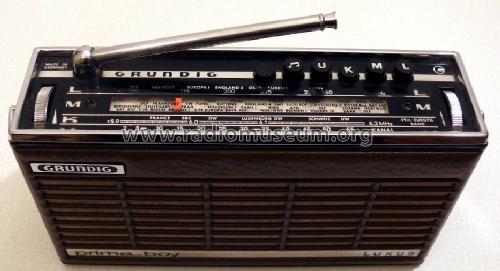

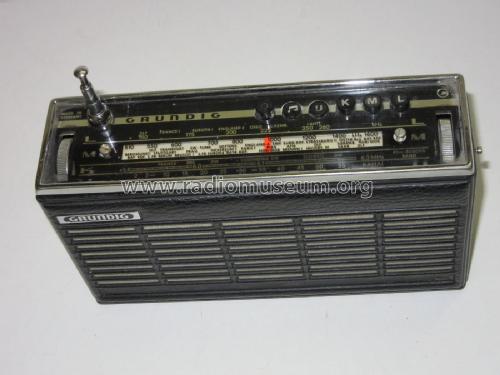

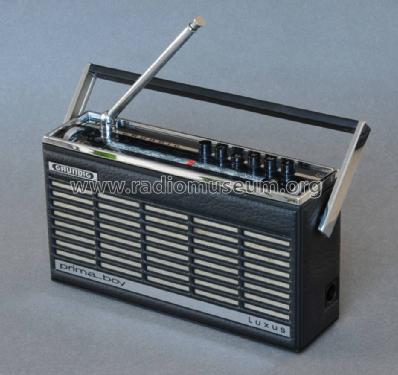

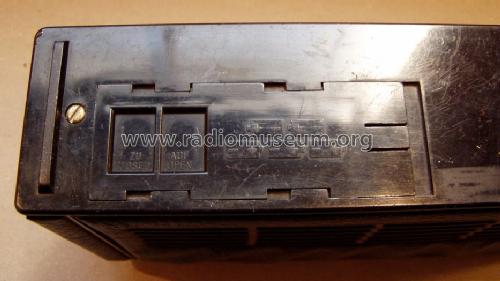

Prima-Boy Luxus 209

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2229

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF255 BF241 BF241 BF241 BF241 BF240 BC108 BC181 AC187 AC188

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Prima-Boy Luxus 209 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 110 x 60 mm / 7.9 x 4.3 x 2.4 inch

• Notes
• Anschluss an 6-V- bzw. 12-V-Autobatterie über entsprechendes Autobatteriekabel; Netzbetrieb mit zusätzlichem Netzteil möglich.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
