Linear Tracking Belt Drive PS-7500
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1985 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 197197
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

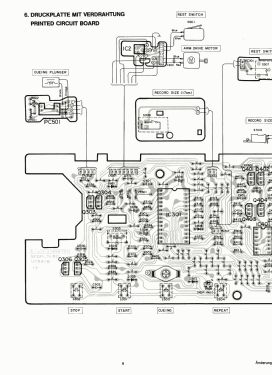

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Linear Tracking Belt Drive PS-7500 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 43 x 8.8 x 34 mm / 1.7 x 0.3 x 1.3 inch
- Notes
- Full automatic, linear tracking record player.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Panagiotis Makridis. See "Data change" for further contributors.
