Radiogram 7062WLE/3D

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 330879
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); Export model
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 160; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiogram 7062WLE/3D - Grundig Radio-Vertrieb, RVF,

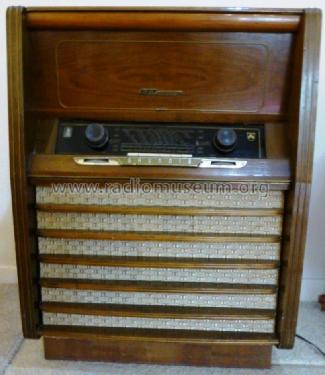

  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 630 x 825 x 415 mm / 24.8 x 32.5 x 16.3 inch
  • Notes

  • The Grundig Radiogram 7062WLE/3D is an export model with LW, MW and 2 SW ranges. It's equipped with a phono preamplifier (EBC41).

    Wave bands:

    • LW = 150 - 340 kHz
    • MW = 510 - 1620 kHz
    • SW1 = 3.4 - 10 MHz
    • SW2 = 10 - 23 MHz

    See also the domestic version with UKW/FM, Musikschrank 7062W/3D. and another export  model 7062WE/3D with MW and 4x SW.

  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
