- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1995 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222032
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

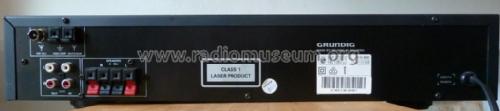

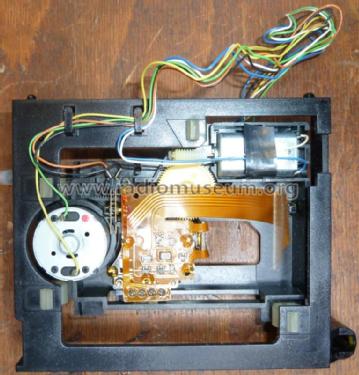

(c)2015 eBay-171690881857-oddysseus12
(c)2015 eBay-171690881857-oddysseus12

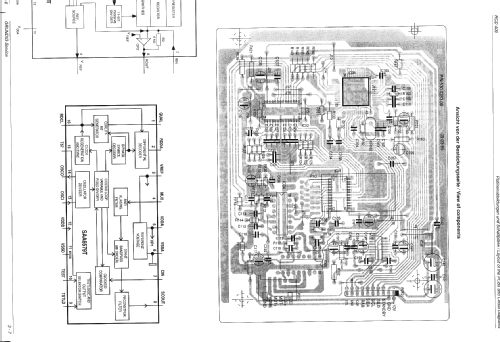

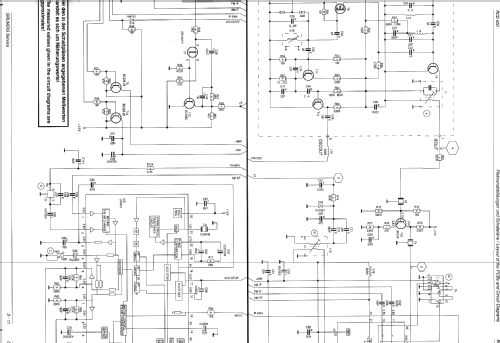

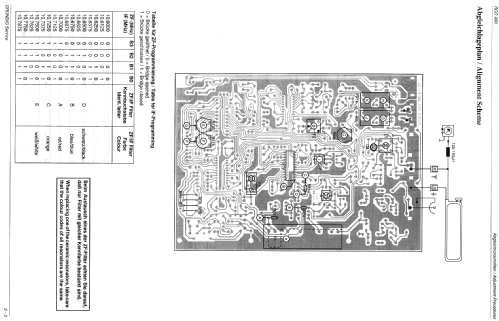

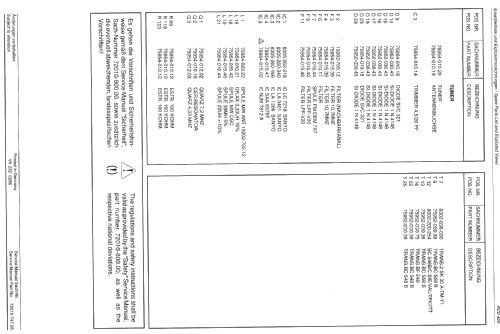

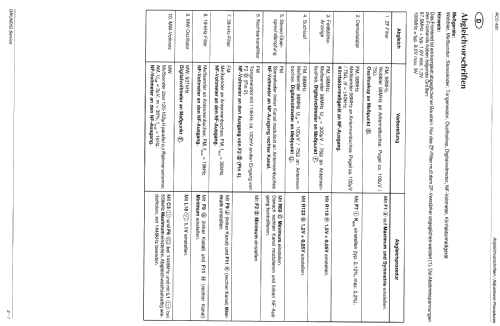

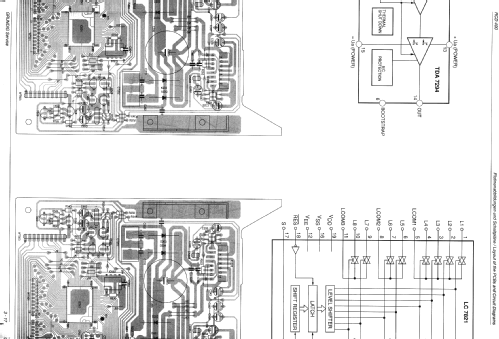

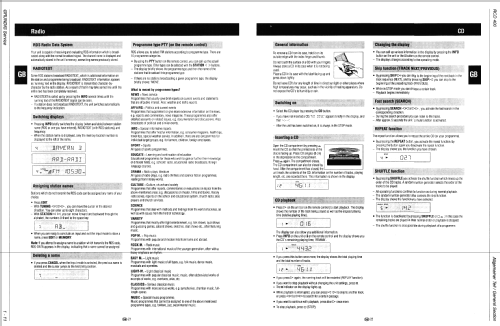

Bild aus Grundig Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: RCD-400 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 435 x 75 x 300 mm / 17.1 x 3 x 11.8 inch
- Notes
- Musikleistung 2x 50 Watt an 4 Ohm.
- Net weight (2.2 lb = 1 kg)
- 5.3 kg / 11 lb 10.8 oz (11.674 lb)
- Mentioned in
- Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
