RDS Quartz Synthesizer Receiver R303

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1992 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 228567
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

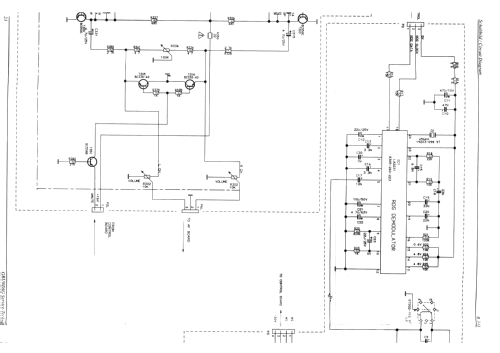

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Radio with other functions
  • Power type and voltage
  • Alternating Current supply (AC) / 220-230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 150 W (undistorted)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: RDS Quartz Synthesizer Receiver R303 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 125 x 330 mm / 17.1 x 4.9 x 13 inch
  • Notes

  • Grundig R303; 30 Intermix Speichermöglichkeiten, RDS (Radio Data System),
    Verstärkerteil: 2 x 130/75Watt Musik-/Nennleistung an 8 Ω, Fernbedienung, Gehäuse schwarz.

  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
