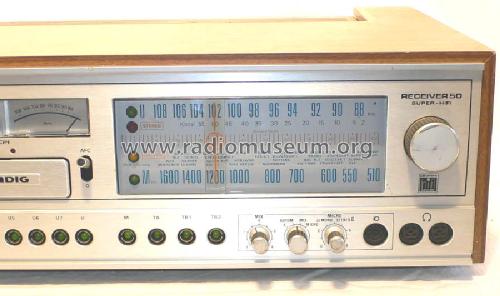

HiFi Receiver 50
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110423
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: HiFi Receiver 50 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 560 x 160 x 310 mm / 22 x 6.3 x 12.2 inch
- Notes
- Metallgehäuse mit Holzblende. Stations und Programtasten über Sensor. Eingänge für Antennen-Rotor, 2× Band, Phono-Kristall, Phono-Magnet, Monitor, Mikrofon. 4 LS- Buchsen, 2× Kopfhörer.
- Net weight (2.2 lb = 1 kg)
- 14.2 kg / 31 lb 4.4 oz (31.278 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
