Receiver R3000

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 244142

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

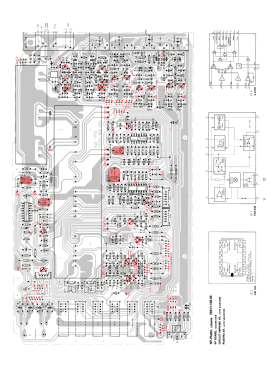

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• BF900 BF936 BF199 BF240 BF245 BF440 BC328 BC338 BC413 BC415 BC548 BC549 BC550 BC560 BC651 BD135 GP140 GP145 µPD1703C 78L12A LM324 MC1310 MC78M05CT MR751 S042 S0459 SAA1059 SAA1070 SMV2026 TCA420 TCA530 TDA1072 UAA180 DM12-9-13 HA1105 HA1106 LD30I 1N4001 1N4148 1N4151 1N5341 AA119 B40C1500 B80C1500 BA243 BA316 BA317 BB104 BZX85 BZY97 ZPD5,1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (150 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Receiver R3000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 110 x 380 mm / 17.7 x 4.3 x 15 inch

• Notes

• Halbleiter teils mehrfach vorhanden.

  Analoge Abstimmung, mit digitaler Frequenzanzeige.

  Siehe auch die rein optische Variante Grundig R 3000-2.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
