Musikgerät RF110a

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92694

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

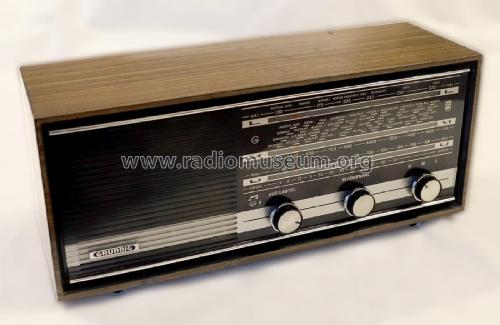

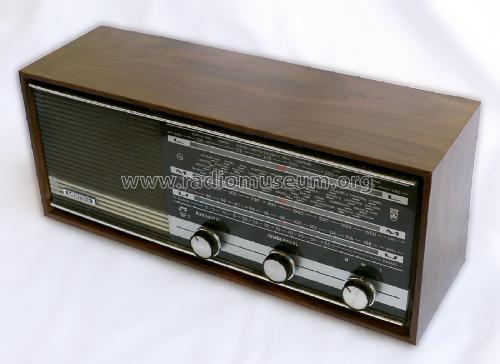

• Picture

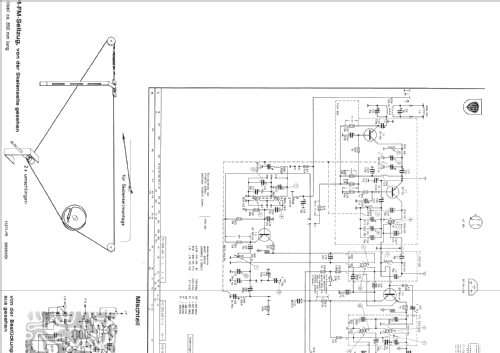

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF185 BF184 BF194 BF195 BF195 BC148 BC148 AC187 AC188 AA116 AA116 1N60 B30C350 B30C350

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 2 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Musikgerät RF110a - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 390 x 170 x 130 mm / 15.4 x 6.7 x 5.1 inch

• Notes
• Dial lamps: 7V/0,035A.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
