• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183875

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

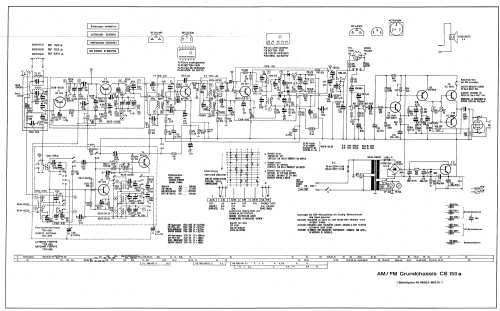

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF185 BF184 BF195 BF194 BC238 BC237 BC148 or. BC108 BC181 AC187 AC188 AC117 AA116 AA116 1N60 5522 B30C300

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits

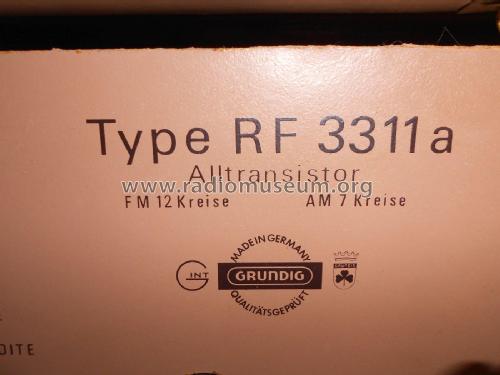

• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

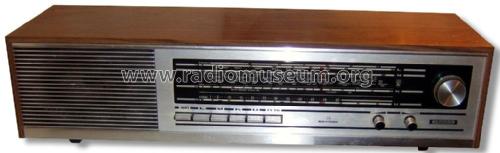

• Model: RF3311a Ch= CS150a - Grundig Radio-Vertrieb, RVF,

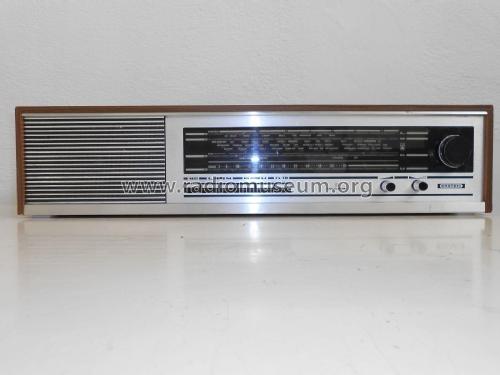

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 160 x 190 mm / 26 x 6.3 x 7.5 inch

• Notes
• Der Empfänger RF 3311a basiert auf dem Chassis CS 150a. Das Gerät hat Anschlüsse für TA, TB und für einen Außenlautsprecher.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundig Drundchassis CS150a)

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
