RF-440 Ch= RC-440

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74728

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BF414 AF306 BC239 TBA120 TBA570 TCA830 B20C300

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RF-440 Ch= RC-440 - Grundig Radio-Vertrieb, RVF,

• Shape

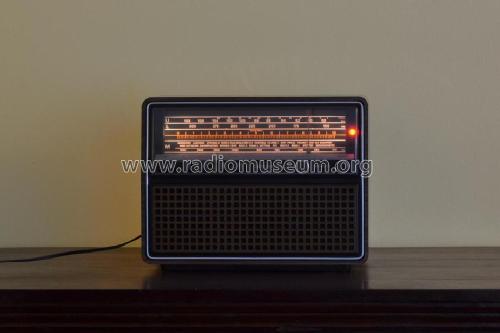

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 260 x 170 mm / 13.4 x 10.2 x 6.7 inch

• Notes
• Gehäuse: nussbaumfarben oder weiss. Das Gerät wurde bei Grundig-Portugal hergestellt.

• Net weight (2.2 lb = 1 kg)
• 2.650 kg / 5 lb 13.4 oz (5.837 lb)

• Source of data
• Handbuch VDRG 1976/1977

• Literature/Schematics (1)

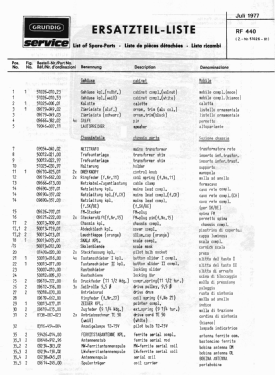

• -- Original-techn. papers. (Service-Manual '76 und ETL-Liste Juli 1977)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
