RF720 Ch= RC202P

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1979/1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74537

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

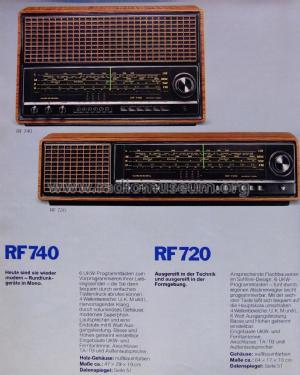

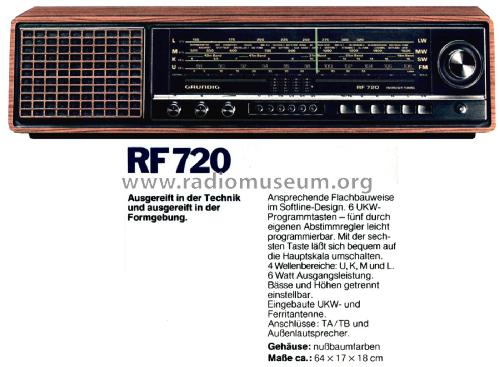

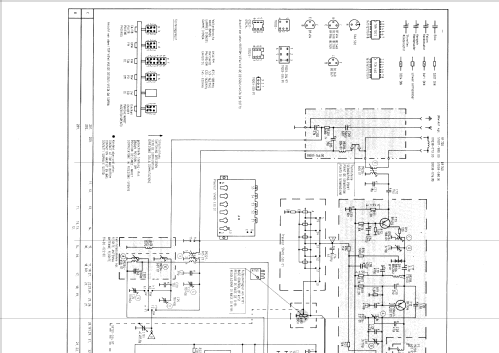

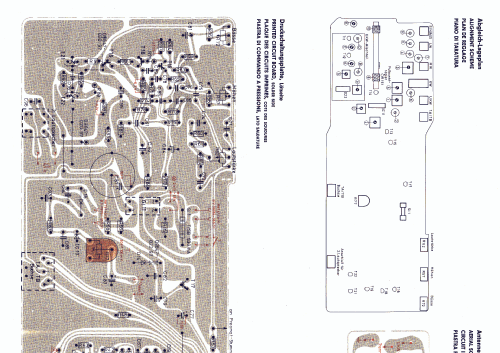

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF414 BF936 BF494 BC558 BC548 BC559 BC548 BC548 BC368 BC369 BC338 TBA120S TCA440 TAA550 BB104 or. BB204 AA118 BZX75 ZPD12 BAY46 or. BA147 B20C500

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RF720 Ch= RC202P - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 170 x 180 mm / 25.2 x 6.7 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• -- Original-techn. papers. (Grundchassis RC202P, 8/79)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
