RF 430 GB
Grundig Ltd., London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Grundig Ltd., London
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152658

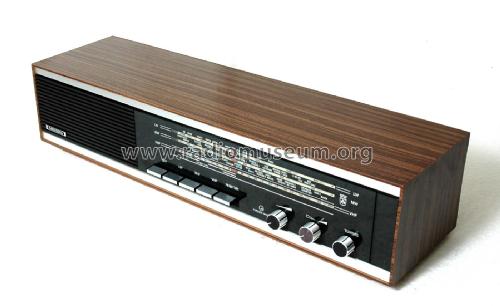

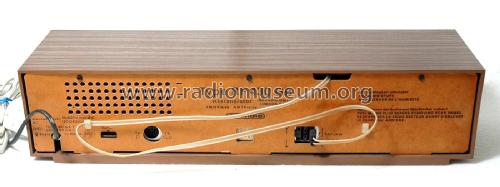

Pic. just as type proof!
eBay item number:255519751470
eBay item number:255519751470
eBay item number:255519751470
eBay item number:255519751470
eBay item number:255519751470
eBay item number:255519751470
eBay item number:255519751470
- Number of Transistors
- Semiconductors present.
- Semiconductors
- BF222 BF185 or. BF255 BF238 or. BF240 BF255 or. BF185 BF237 or. BF241 AA116 AA116 1N60 BC308 or. BC213 BC148 or. BC183 AC187 AC188
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: RF 430 GB - Grundig Ltd., London
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Grundig RF 430 GB Alltransistor;
English labeled, tone control, DIN terminals, Grundig London.The model is practically identical to the Minerva R450 radio.
There is also a circuit diagram there.Das Modell ist praktisch identisch mit Minerva-Radio R450
Dort gibt es auch einen Schaltplan.
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- Radio And Television Servicing books (R&TVS) (Page 512 in the 1974-75 R&TVS edition)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
