RF640 Ch= RC202

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1979/1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73395

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

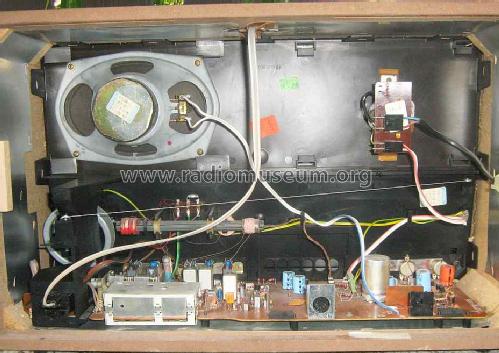

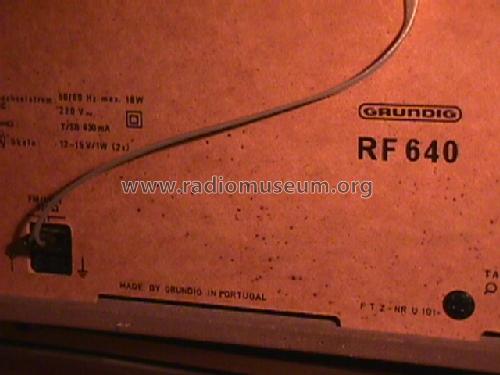

• Picture

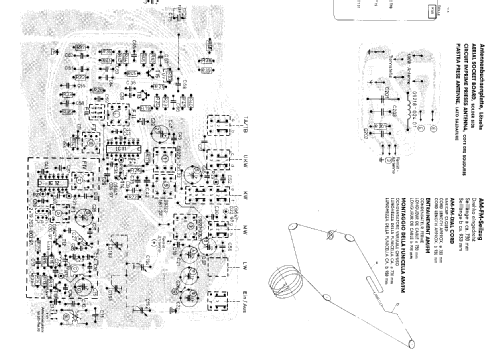

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF414 BF936 BC558 BF494 BC548 BC559 BC548 BC548 BC368 BC369 BC338 TBA120S TCA440 AA118 BZX75 ZPD12 B20C500

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RF640 Ch= RC202 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 470 x 290 x 190 mm / 18.5 x 11.4 x 7.5 inch

• Notes
• relativ grosses Transistorradio mit aussergewöhnlichem Design (Gehäuseart und -dimension), mechanischer Aufbau und Lautsprecher wie bei Röhrenradios, daher sehr gute Tonqualität und Bedienbarkeit (Senderwahl mit Schwungrad; große Skala). In Portugal hergestellt.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundchassis RC202, 4/79)

• Author
• Model page created by Dieter von Loeffelholz. See "Data change" for further contributors.
