• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133894

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

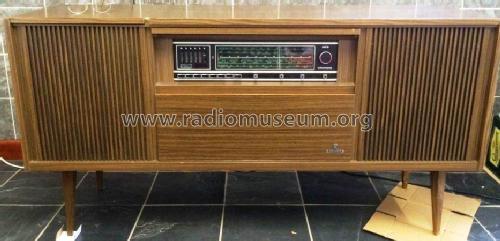

• Model: Rossini 10 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1450 x 750 x 430 mm / 57.1 x 29.5 x 16.9 inch

• Notes
• ICs: 4.
  Grundig Stereo-Konzertschrank Rossini 10.
  Ausgangsleistung: 2× 15 W;
  Phono-Chassis = Dual 1220 mit Keramik-System CDS660.

• Source of data
• Handbuch VDRG 1975/1976

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
