• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27638

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

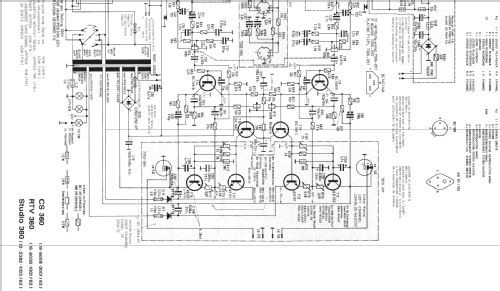

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rossini 3 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1530 x 750 x 420 mm / 60.2 x 29.5 x 16.5 inch

• Notes
• Stereo-Decoder integriert; NF-Verstärker mit 2 Endstufen je 7 W (Sinus);
  Phono-Chassis = Dual 1210 mit Kristallsystem CDS360.

• Net weight (2.2 lb = 1 kg)
• 78 kg / 171 lb 12.9 oz (171.806 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970
