RR220 International

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1979/1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112919

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

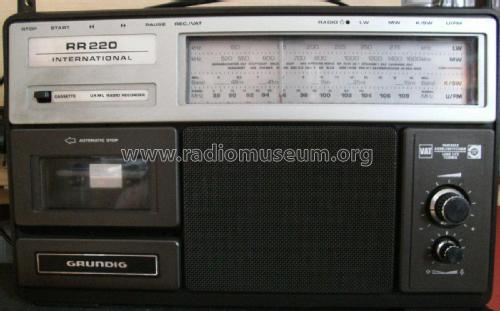

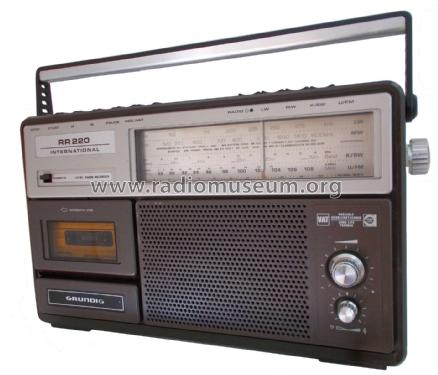

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RR220 International - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 380 x 230 x 115 mm / 15 x 9.1 x 4.5 inch

• Notes
• Der Mono- Radiorecorder RR220 ist transistorbestückt und hat nur in der NF- Endstufe ein IC (TBA820). Anschlüsse für TA / TB und für einen Außenlautsprecher.
  2,5 Watt Musikleistung bei Netzbetrieb, 1,7 Watt Sinusleistung bei Batteriebetrieb, optionaler Akkubetrieb mit Dryfit Akkuset 478.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
