• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155307

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage

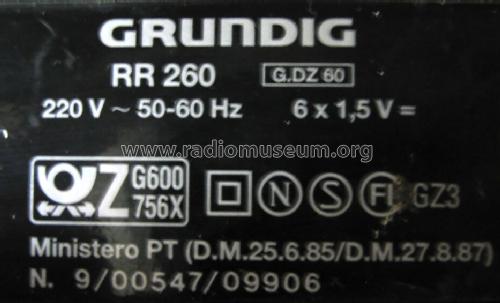

• Line / Batteries (any type) / 220 / 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 9 cm = 3.5 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

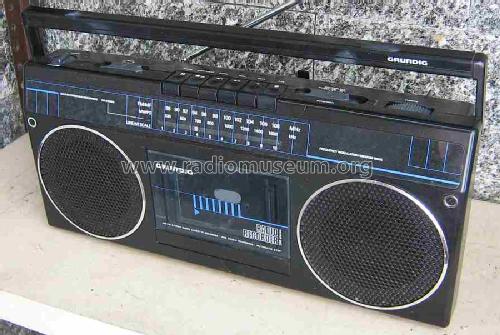

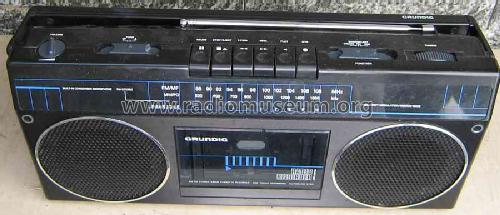

• Model: RR260 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 180 x 80 mm / 15.7 x 7.1 x 3.1 inch

• Notes

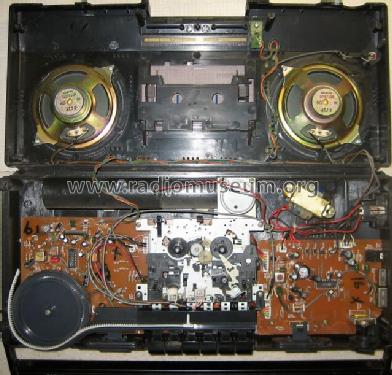

• Der Radiorecorder RR260 ist ein Stereo- Gerät, aufgebaut mit 4 ICs. Ein Mikrofon und eine Anschlußbuchse für einen Kopfhörer sind eingebaut.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Klemens Rhode. See "Data change" for further contributors.
