• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172855

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / C : 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

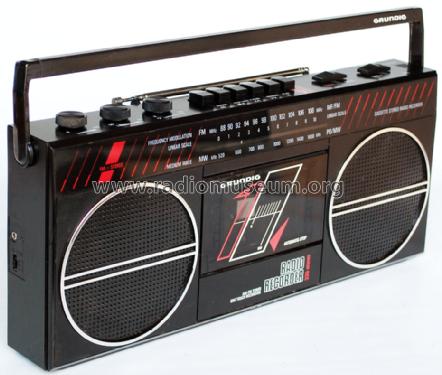

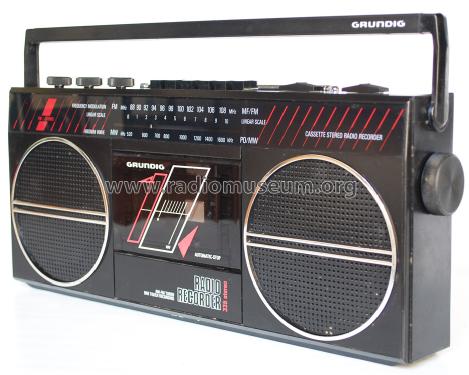

• Model: RR335 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 420 x 180 x 80 mm / 16.5 x 7.1 x 3.1 inch

• Net weight (2.2 lb = 1 kg)
• 1.950 kg / 4 lb 4.7 oz (4.295 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
