RR920 Stereo International (SL)
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1980
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144535
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
(c)2015 eBay-251857720526-delalcey
(c)2015 eBay-251857720526-delalcey
(c)2015 eBay-251857720526-delalcey
(c)2015 eBay-251857720526-delalcey
(c)2015 eBay-251857720526-delalcey
(D) Grundig Revue 1980

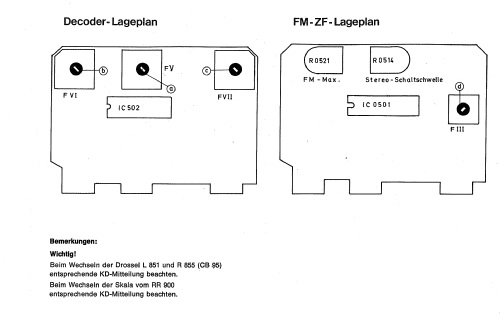

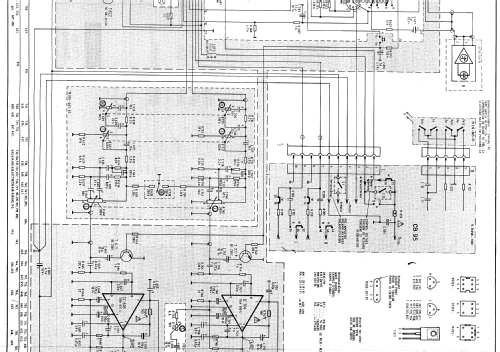

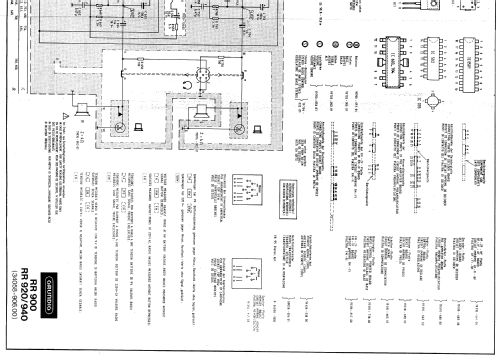

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220-230/6 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RR920 Stereo International - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 480 x 290 x 120 mm / 18.9 x 11.4 x 4.7 inch
- Notes
- 2 Ausführungen: RR920-Stereo-International und RR920-Stereo-International-SL
Grundig RR920 International Super Stereo Radio Recorder;
6 UKW Festsendertasten, 2 x 5 W, IC bestückt, 2 Anzeigeinstrumente für Feldstärke, Abstimmung, Batt. und Aussteuerung, Bandzählwerk, Fe-/FeCr & Cr Kassetten Tauglichkeit, 2 Electret Mikrofone, VAT - Variable Ausblendtechnik, Stereo - Super Stereo Fader, Bass-, Höhen und Balance Regler, DIN Kopfhörer und ext. Geräte Anschlußbuchse, DIN Antenneneingang, Betrieb auch mit optionalen Dryfit Accu 476, Gehäuse braun-metallic.
Bis auf die Uhr und LCD Frequenzanzeige weitgehend baugleich mit dem RR1020 Stereo International.
- Net weight (2.2 lb = 1 kg)
- 6.1 kg / 13 lb 7 oz (13.436 lb)
- Mentioned in
- -- Original prospect or advert ((D) Grundig Revue 1980)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
