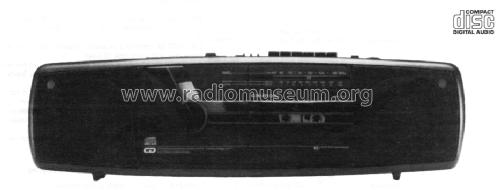

RR 1900 CD

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1991 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 230147
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

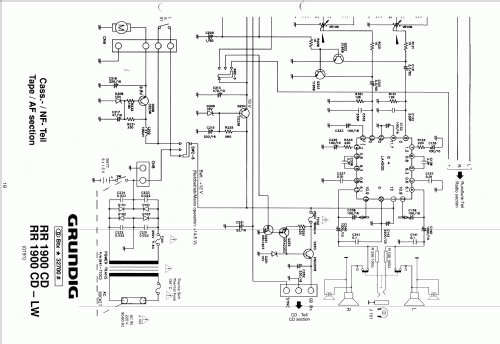

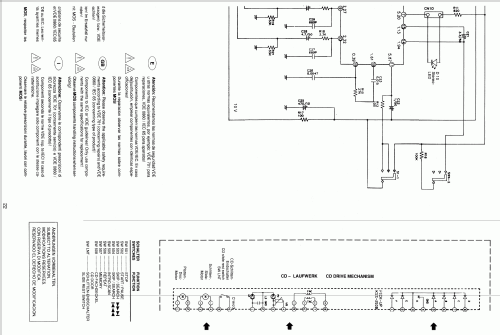

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 8 x 1,5 Mono Volt
  • Power out
  • 24 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RR 1900 CD - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Stereo Radiorecorder mit CD-Spieler und Cassettenteil. 2-Wege Lautsprecher.

  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
