RT40

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965–1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26170

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

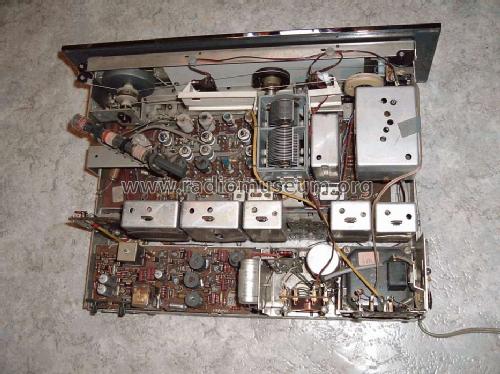

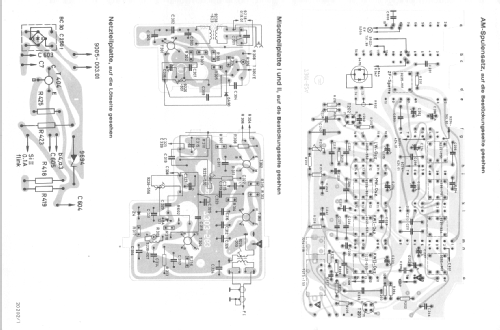

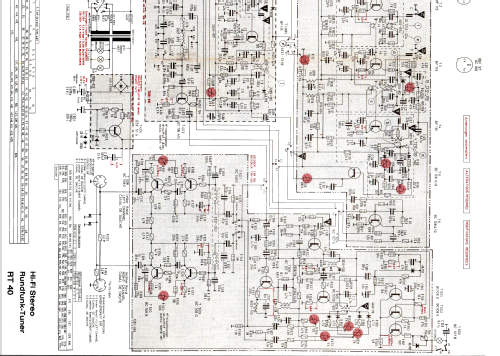

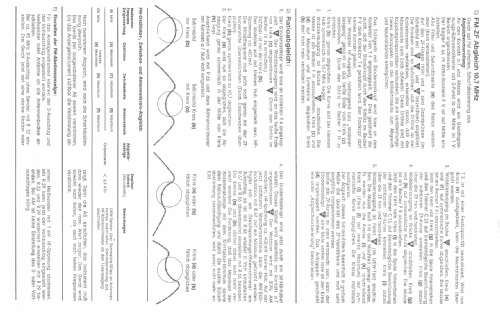

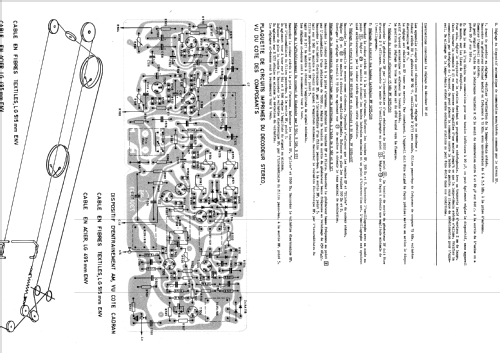

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 27

• Semiconductors
• AF139 AF178 AF178 AF178 BF115 BF115 BF115 BF115 BC108 BC108 BC108 BC108 BC107 BC107 BC107 BC107 BF115 BF115 BF115 BC108 BF115 BC108 BC108 BC108 BC108 BC108 BSY51 OA90 BA121 AA113 AA118 AA119 1N60 ZD15 B30C250

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: RT40 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 150 x 270 mm / 15.4 x 5.9 x 10.6 inch

• Notes

• Stereo-Decoder eingebaut. Zweikanaliger NF-Ausgang über Impedanzwandler (1 V an 2 kOhm).

  Dioden teilweise mehrfach vorhanden.

  Dazu passender Verstärker: SV40.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 650.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966

• Mentioned in
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• Funk-Technik (FT) (24/1965, S. 981, 982 / Stereo-Decoder des RT40, Schema)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Other Models

• Here you find 6208 models, 5434 with images and 4205 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
