• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1971–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28402

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• AF106 AF106 BF254 BF255 BF238 BF237 BF237 BC147 BC147 BC184 BC184 BC238 BC238 BC237 BC237 AD161 AD162 AD162 AD161

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

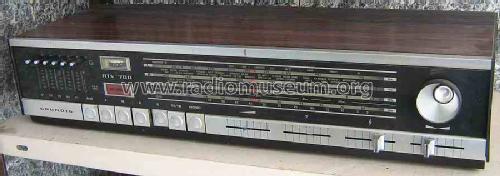

• Model: RTV700 Ch= RC500 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 592 x 131 x 210 mm / 23.3 x 5.2 x 8.3 inch

• Notes

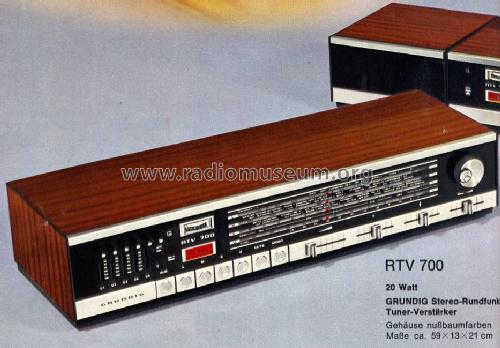

• Grundig Stereo-Steuergerät RTV700.
  Stereo-NF-Verstärker mit 2 Endstufen je 6 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 538.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
