RTV900 (a) HiFi

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28404

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

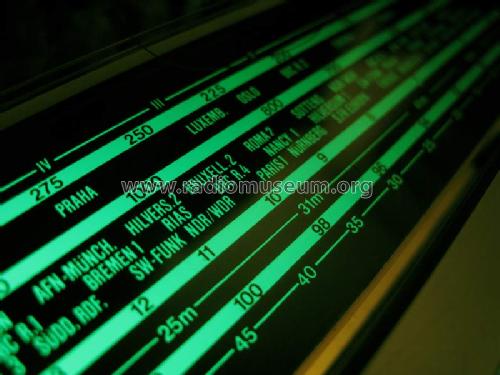

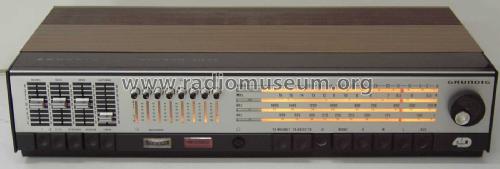

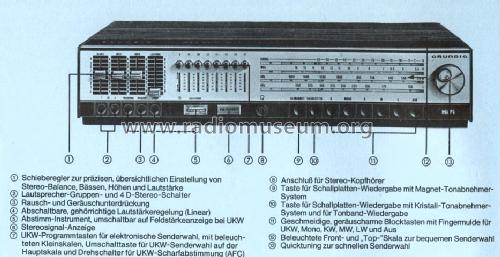

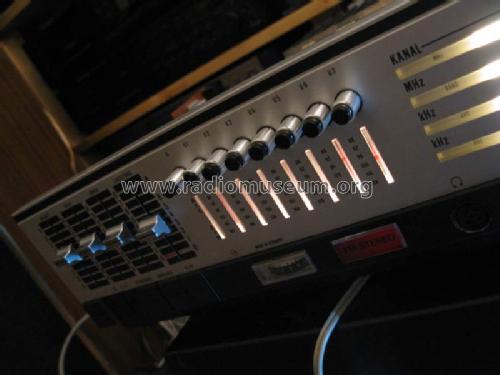

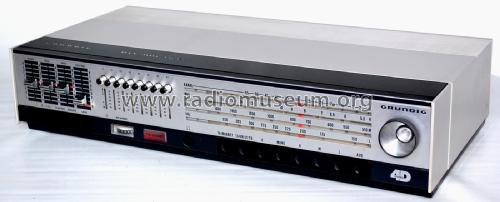

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

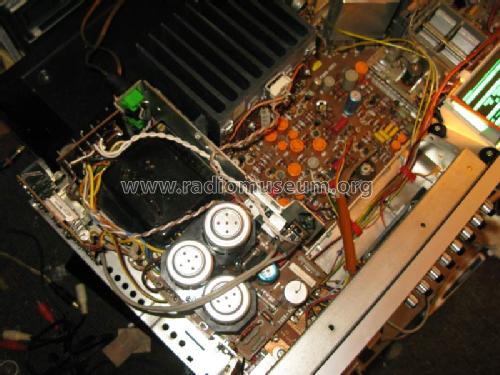

• Number of Transistors
• 50

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (70 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RTV900 HiFi - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 590 x 130 x 290 mm / 23.2 x 5.1 x 11.4 inch

• Notes
• Grundig HiFi-Stereo-Steuergerät RTV900 HiFi.
  NF-Verstärker mit 2 Endstufen je 25 W (Sinus).
  3 Ausführungen: Nußbaum, Palisander oder Schleiflack weiß.
  RTV900a mit geänderter Beschaltung der Anschlussbuchsen.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972

• Literature/Schematics (1)
• -- Original-techn. papers.
