SAT-Receiver STR-211
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1992 ?
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 256921
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

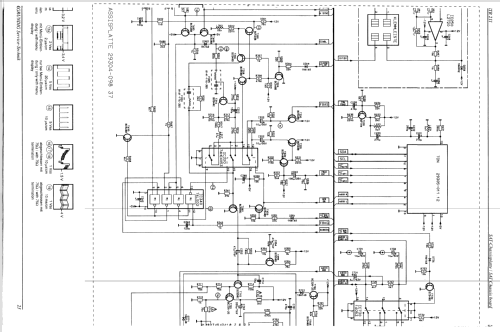

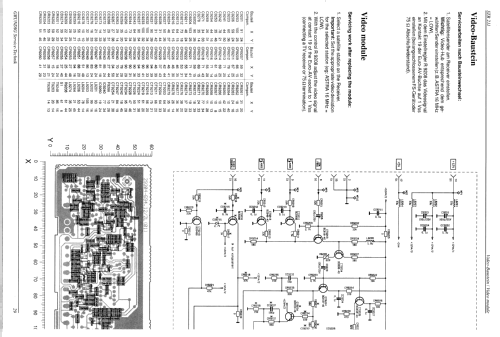

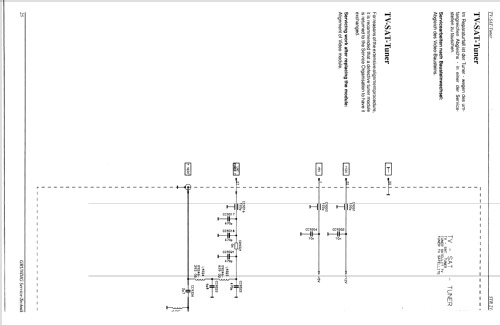

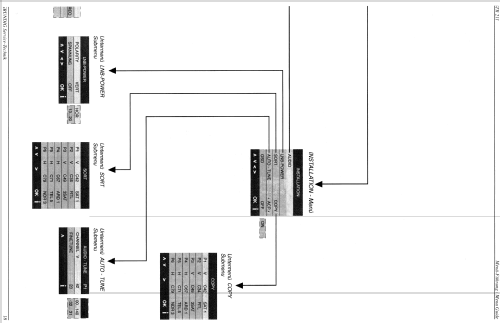

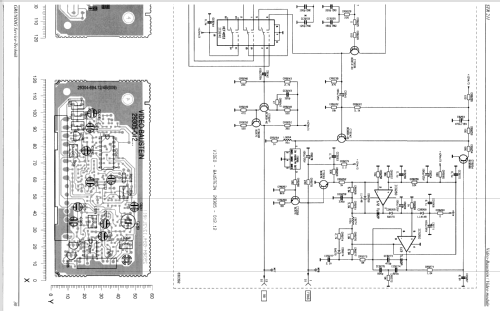

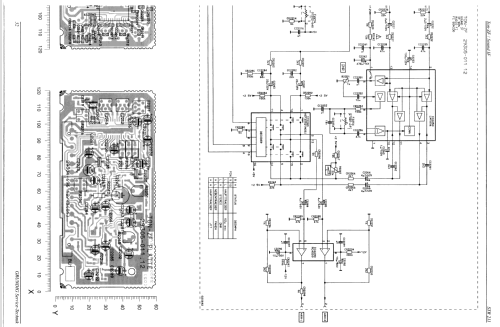

Abbildung im Service Manual
Abbildung im Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- SAT-IF
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: SAT-Receiver STR-211 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 370 x 80 x 300 mm / 14.6 x 3.1 x 11.8 inch
- Notes
-
Analoger SAT-Receiver STR-211.
99 Programmspeicher,
950-2050 MHz,

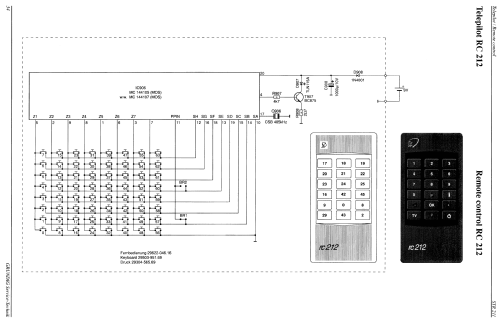

Fernsteuerung RC 212
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
