Satellit 400 International, Professional
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1986–1989
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 73874
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Audio volume and tone controls section.
Processor and LCD display section.
PCB and LW/MW AM magnetic antenna.
Analog micro-ammeter

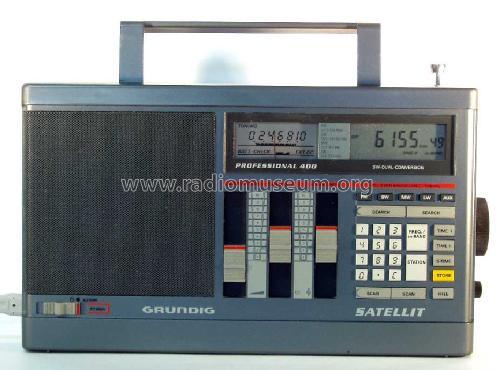

Grundig Satellit 400
Typenschild
Satellit 400-Innen

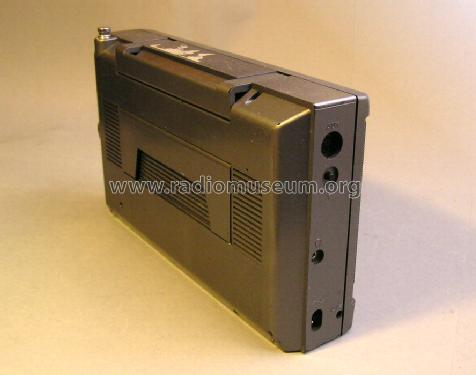

Satellit 400
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 68
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 54400/450 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110-127; 220-240 / C: 6 x 1.5 & AA: 3 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Satellit 400 [International, Professional] - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 304 x 180 x 70 mm / 12 x 7.1 x 2.8 inch
- Notes
-
SW coverage (AM/SSB with BFO):
Satellit 400 professional: 1612 - 26100 kHz,
Satellit 400 international: 1612 - 30000 kHz.
24 station memories (intermix).
Switchable illumination for tuning instrument and LCD display.

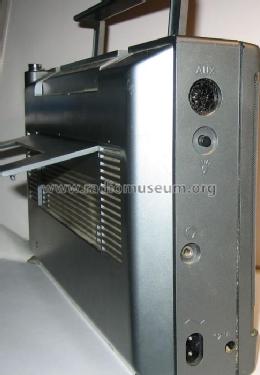

External connections for antenna (75Ω IEC), earphone, AUX in, DC 12V.
Required batteries:
6 C-cells (Baby) + 3 AA-cells for clock and memory backup.
Preisangabe aus Grosshandels-Liste für Einzelhändler.
- Net weight (2.2 lb = 1 kg)
- 2.1 kg / 4 lb 10 oz (4.626 lb)
- Price in first year of sale
- 451.44 DM
- External source of data
- Roeder,H.-E.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
- Other Models
-
Here you find 6210 models, 5438 with images and 4207 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collections
The model Satellit is part of the collections of the following members.
Literature
The model Satellit is documented in the following literature.
Forum contributions about this model: Grundig Radio-: Satellit 400
Threads: 1 | Posts: 3
Hier ist der Satellit nur als "Satellit 400" gelistet. In den Bildern erkennt man aber, daß es sich um zwei verschiedene Typen handeln muß.
Einmal steht "International 400" und einmal "Professional 400" auf den Geräten. Da ich mich nun leider mit dieser Klasse von Geräten überhaupt nicht auskenne, die Frage an die kompetenteren Sammler:
Was ist der Unterschied und wer kann eventuell Umbennennung und Neuanlage durchführen?
Martin Steyer, 16.Jan.14
