- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1982
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 120938
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Netzteil mit sicherungen

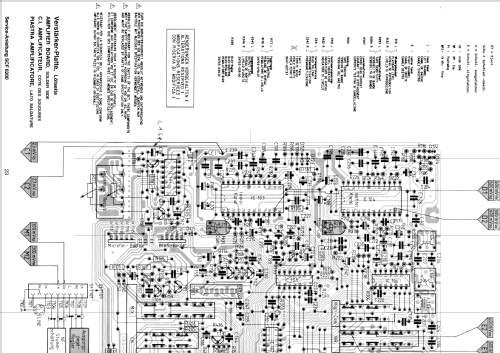

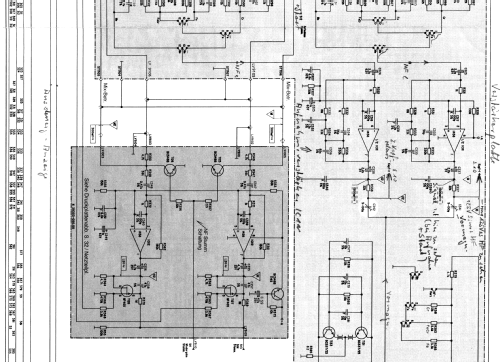

Verstärkerplatte mit 1 Sicherung

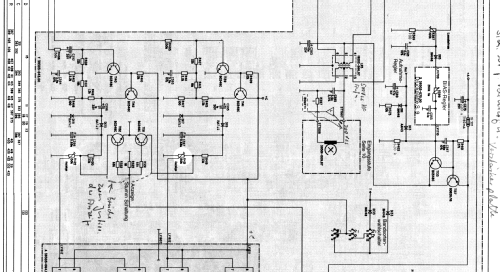

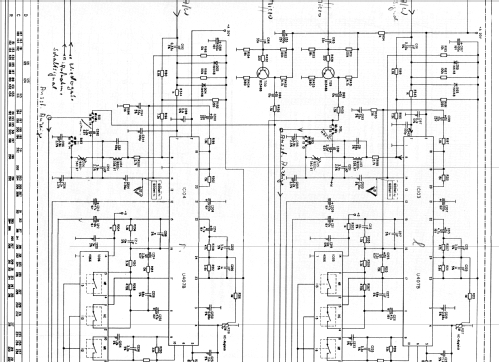

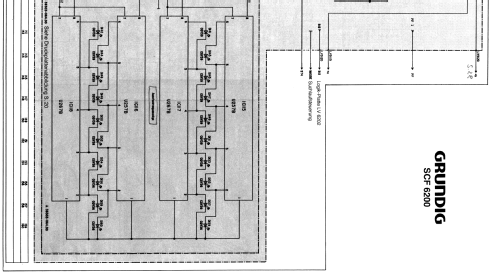

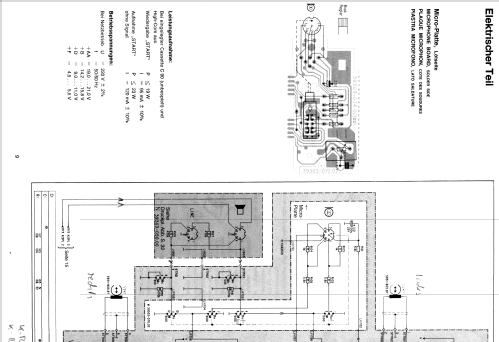

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: SCF6200 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 450 x 60 x 340 mm / 17.7 x 2.4 x 13.4 inch
- Net weight (2.2 lb = 1 kg)
- 7.4 kg / 16 lb 4.8 oz (16.3 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
