Semitest 1 (I)
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1967
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 102801
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
EbayDE

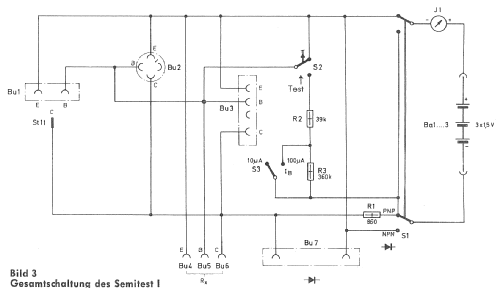

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 3 x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Semitest 1 - Grundig Radio-Vertrieb, RVF,
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 82 x 135 x 65 mm / 3.2 x 5.3 x 2.6 inch
- Notes

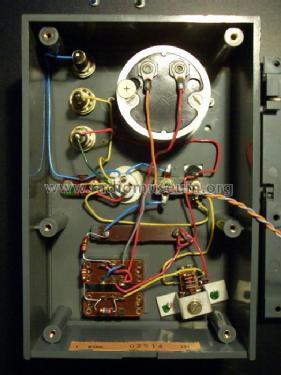

- Taschenformatiges Testgerät für PNP/NPN-Transistor-Prüfung sowie Diodenmessungen.
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Price in first year of sale
- 240.00 DM
- Literature/Schematics (1)
- Grundig Technische Informationen 3/1967
- Author
- Model page created by a member from A. See "Data change" for further contributors.
