• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1960

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 101259

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• PCL84 ECC85 PCL84 ECH81 ECC85 PCL84 ECH81 ECC85 ECC85 ECC85

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

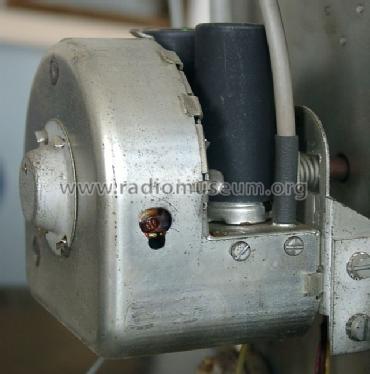

• Model: Bildmustergenerator SG3 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 320 x 230 mm / 16.5 x 12.6 x 9.1 inch

• Notes

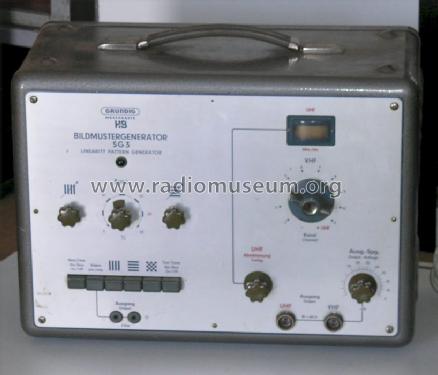

• Grundig Bildmustergenerator SG3.
  Band I: Kan. 2-4, Band II: Kan. 5-11; Tonträgerfrequenz: 5,5 MHz.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 16,740.00 BFr

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
