- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1974–1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29477
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Ebay Nr. 300005116215 Bild bearbeitet.

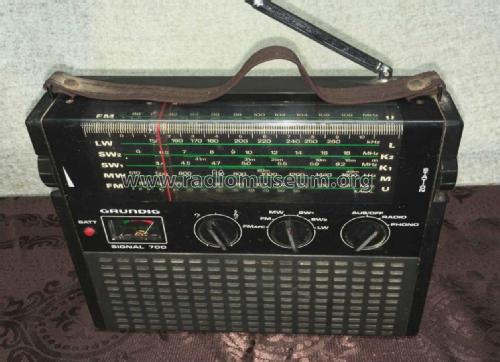

Ausgebaute Platine Grundig Signal 700

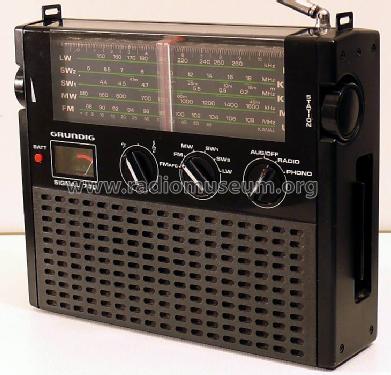

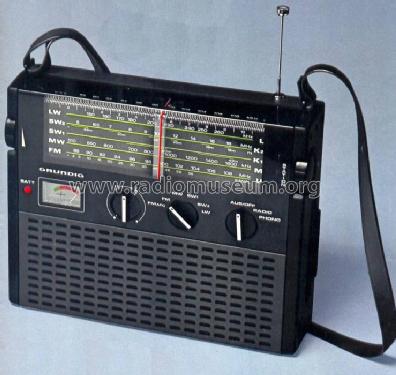

Grundig Signal 799

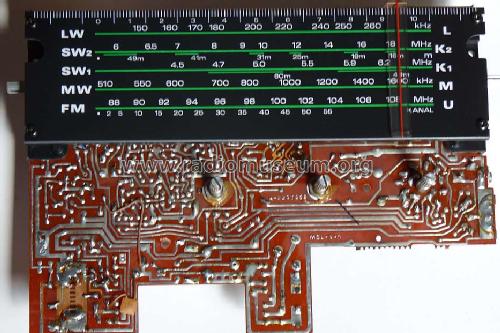

Platine von der Leiterseite
Seilzug
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 220; (4 × 1,5) Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Signal 700 - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 210 x 70 mm / 10.2 x 8.3 x 2.8 inch
- Notes
- NF-Ausgangsleistung bei Netzbetrieb: 1,8 W.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- External source of data
- Erb
- Source of data
- Katalog RFP 1974
- Mentioned in
- Handbuch VDRG 1975/1976
- Literature/Schematics (1)
- -- Original-techn. papers.
- Other Models
-
Here you find 6208 models, 5433 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collections
The model Signal is part of the collections of the following members.
