SO345WE Ch = 7c

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24439
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material

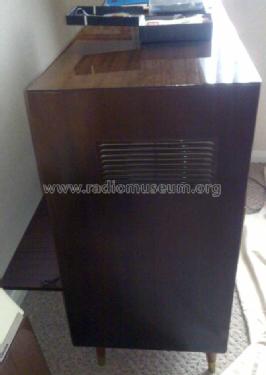

  • Wooden case
  • from Radiomuseum.org
  • Model: SO345WE Ch = 7c - Grundig Radio-Vertrieb, RVF,
  • Shape

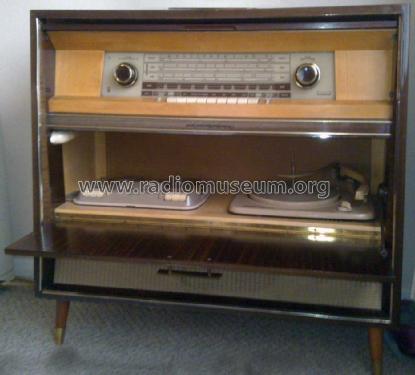

  • Console with Push Buttons.
  • Dimensions (WHD)
  • 850 x 830 x 390 mm / 33.5 x 32.7 x 15.4 inch
  • Notes

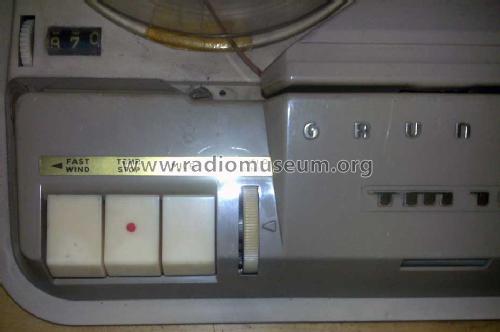

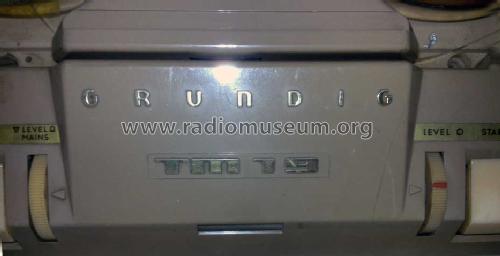

  • The Grundig console SO 345 WE is an export radio which has a stereo-AF-amplifier with two push-pull stages of each 7,5 watts. I has also "space hall" facilities. Phonomascope is possible with an upgrade. See also the domestic model SO 345 - which has a phono-Chassis Telefunken TW504. The tape recorder was also an added feature and could be a different type than shown here.
  • Net weight (2.2 lb = 1 kg)
  • 37 kg / 81 lb 8 oz (81.498 lb)
