• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135872

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

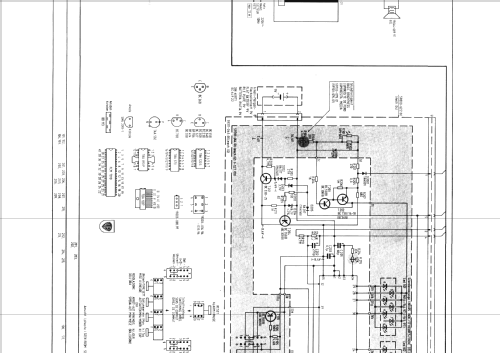

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• TBA120S TBA570 TBA810 FCM7010 TAA550

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: sono-clock 210 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• 5 ICs: TBA120S, TBA570, TBA810P, FCM7010, TAA550
  5 UKW- und 2 MW-Fixtasten.
  9 Volt-Stützbatterie für Uhrmodul, IEC 6LF 22.
