• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72920

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• TBA120S TBA570 TAA611 FCM7010

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 4 AM circuit(s)     5 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

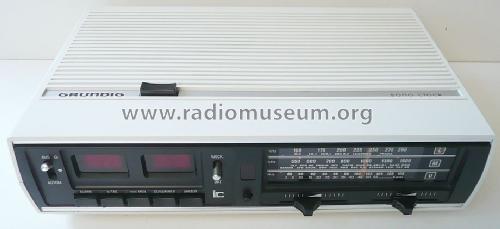

• Model: sono-clock 21a - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• ICs: TBA120S, TBA570, TAA611 und Uhren-IC FCM 7010.

• Source of data
• -- Schematic

• Other Models

• Here you find 6208 models, 5433 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
