• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1986 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131377

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 230 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

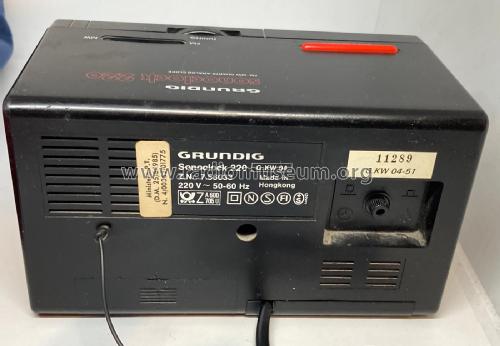

• Model: Sonoclock 220 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 160 x 90 x 90 mm / 6.3 x 3.5 x 3.5 inch

• Notes
• Der Sono-Clock 220 ist ein Uhrenradio mit einer analogen Quartzuhr. Made in Hongkong, bestückt mit 2 Schaltkreisen.

• Net weight (2.2 lb = 1 kg)
• 1.050 kg / 2 lb 5 oz (2.313 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
