FM-AM Analogic Tuner ST2000
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1981
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109844
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM-AM Analogic Tuner ST2000 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 450 x 50 x 350 mm / 17.7 x 2 x 13.8 inch
- Notes
-
An Pin 8 der Ausgangsbuchse liegt eine +15V Steuerpannung zum Einschalten eines passenden Grundig Verstärkers.
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- Price in first year of sale
- 268,000.00 ITL
- Source of data
- - - Data from my own collection
- Mentioned in
- Discoteca Hi-Fi, May 1981 - Italy

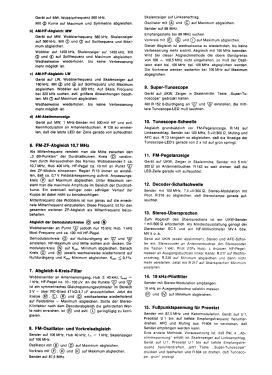

- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
