Stereo-Automatic-Decoder 5U
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1963–1966 ?
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 329347
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

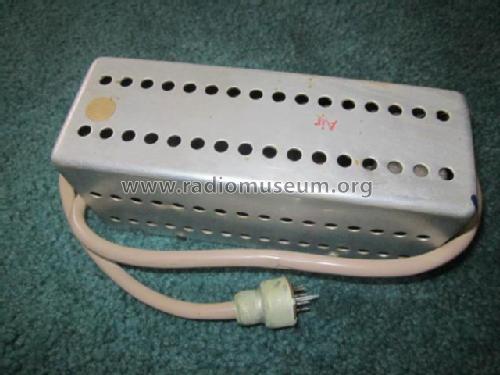

Grundig Stereo Decoder 5U Exterior Top
Grundig Stereo Decoder 5U Exterior Side
Grundig Stereo Decoder 5U Bottom
Grundig Stereo Decoder 5U Interior Left
Grundig Stereo Decoder 5U Interior Right
Grundig Stereo Decoder 5U Interior Top
- Number of Tubes
- 1
- Valves / Tubes
- ECC81
- Number of Transistors
- 1
- Main principle
- Export model
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit. / AC 6.3 & DC 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo-Automatic-Decoder 5U - Grundig Radio-Vertrieb, RVF,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 80 x 60 mm / 7.1 x 3.1 x 2.4 inch
- Notes
-
Der Grundig Stereo-Automatic-Decoder 5U ist die Exportausführung des Modells Stereo-Automatic-Decoder 5 für Nordamerika.
Unterschied: Andere Dimensionierung der HF-Deemphasis im Hilfsträgerkanal für 75 µs,
- Author
- Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
