Stereo Cassette Deck CF5500

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 222963

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

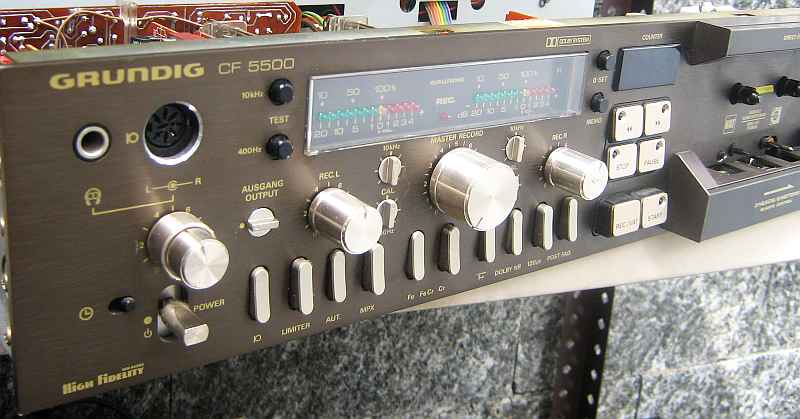

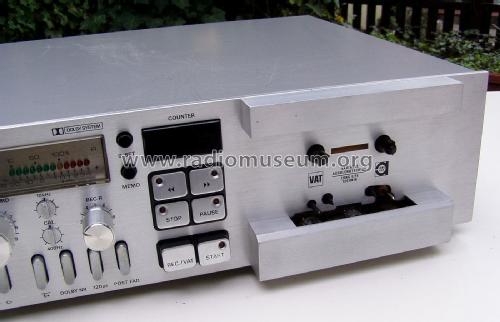

• Picture

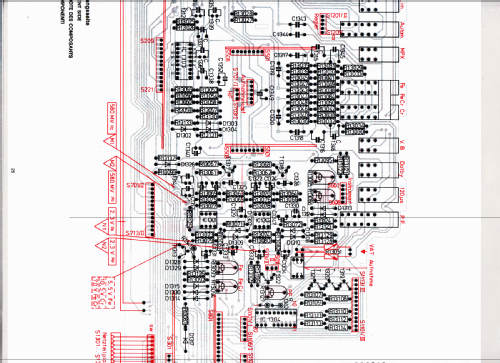

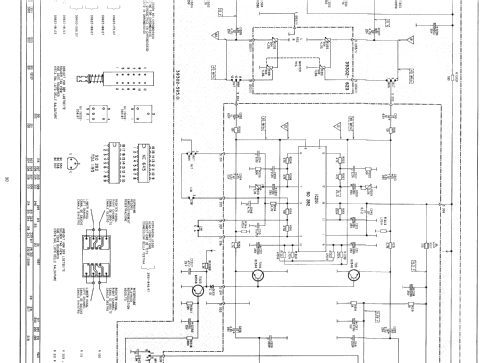

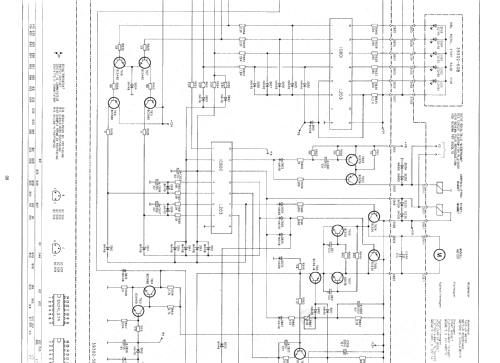

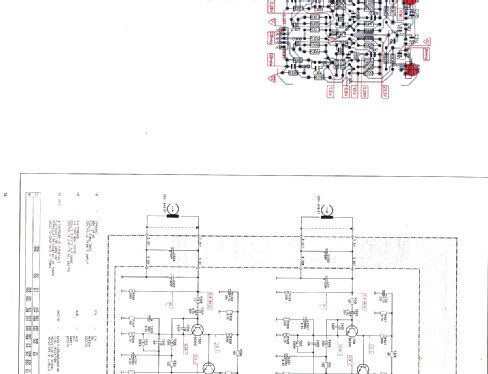

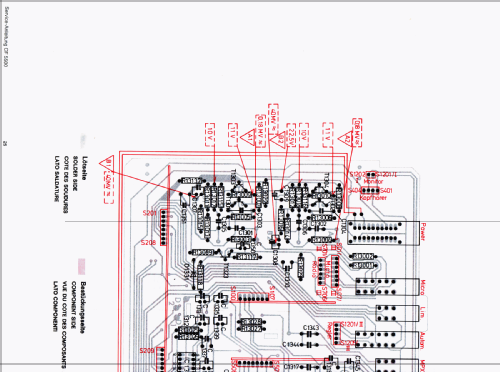

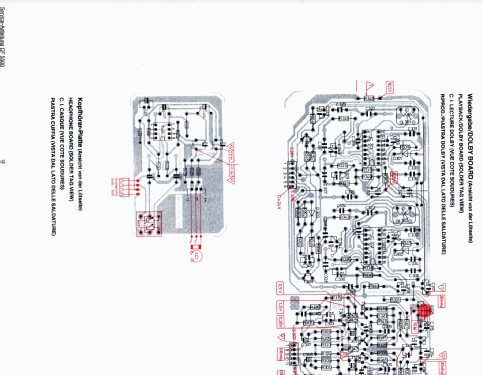

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck CF5500 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 103 x 330 mm / 17.7 x 4.1 x 13 inch

• Notes

• Stereo Cassette Deck CF5500, dies ist ein Vorgängermodell vom CF5500-2 und ist ähnlich, es unterscheidet sich z.B. durch runde LED und hat innerlich technische Abweichungen, zwei Motore, Farbe dunkelbraun.

• Net weight (2.2 lb = 1 kg)
• 8.8 kg / 19 lb 6.1 oz (19.383 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
